Pretrace's TC86 is an advanced asset-tracking device available in Satellite, 4G, Cat M, NB-IoT and LoRaWAN variants. It has a large battery for long life-time operation, an integrated accelerometer for precise motion detection, and optional temperature & humidity, PT100, distance, microwave and leakage sensors for comprehensive environmental monitoring.
An RF module can be added to support additional sensors without wiring — a comprehensive solution for asset monitoring and management across various industries.
TC86-N4 trackers installed on industrial gas tanks deliver scheduled position reports every 12 hours with minimal power consumption. Operators maintain daily, at-a-glance visibility and management of their tank fleet, supported by ATEX certification for hazardous-area deployment.

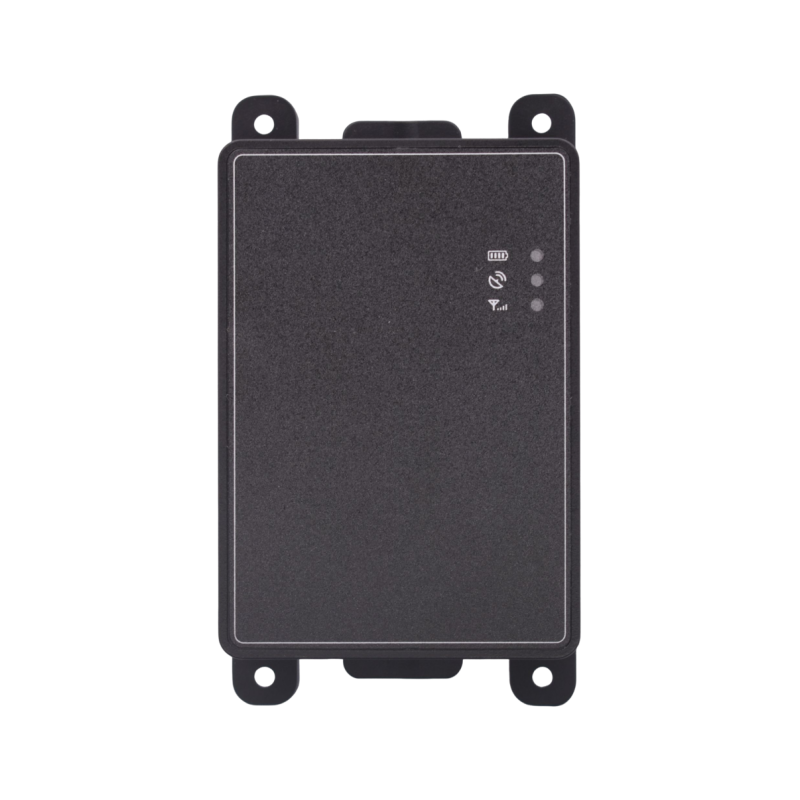

Non-rechargeable battery for 10 years life-time tracking — set and forget.

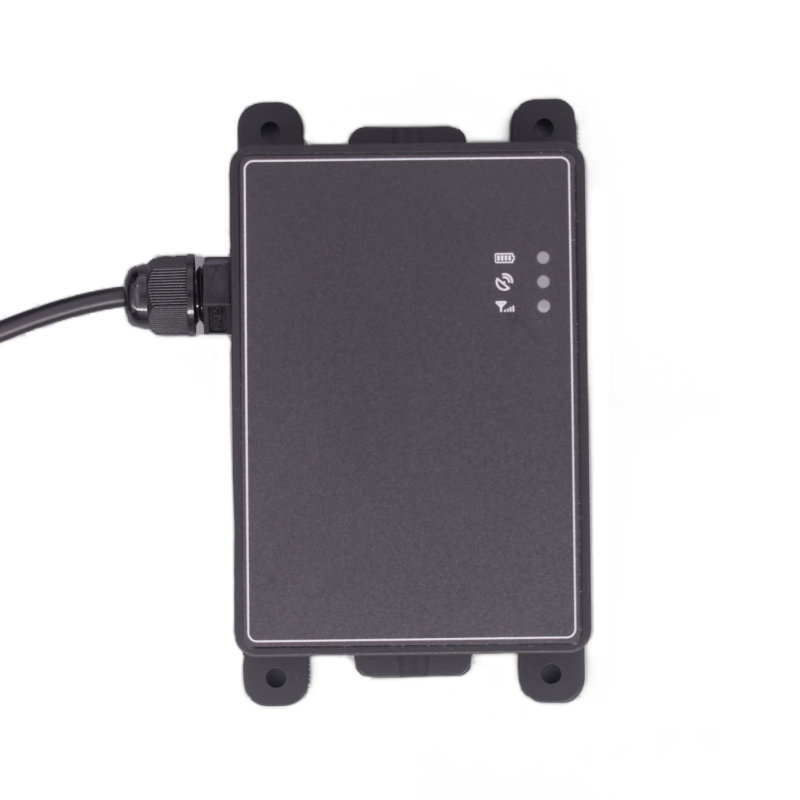

External power connection with digital and analog inputs for real-time tracking applications.
Large battery with wireless charging for portable and frequent tracking.
| Item | TC86-N | TC86-Q | TC86-S |
|---|---|---|---|
| Bands / Regions |
TC86-N4/Q4/S4: LTE: Global TC86-NN/QN/SN: Cat NB: Global TC86-NM/QM/SM: Cat M & Cat NB: Global TC86-NT/QT/ST: NTN (Satellite connectivity): L-Band (B255), S-Band (B256, B23) TC86-NL/QL/SL: LoRaWAN: EU868 / US915 / AU915 / AS923 / KR920 / IN865 | ||
| GNSS | GPS, BDS / GLONASS, Galileo, QZSS Sensitivity -160 dBm · Position accuracy < 5 m TTFF: Cold start < 28 s, Hot start 2 s | ||
| Optional Sensors |
Temp & Humidity: -45.0 ~ +85.0 ºC (environmental monitoring, cold chain) PT100: -200.0 ~ +180.0 ºC (cryogenic refrigeration, medical transport) Distance: 3-400 cm (tank / container / trash bin / sewer) Microwave: 5-400 cm (human detection, hunting trap) Leakage: water / liquid leakage detection (non-touching) | ||
| Battery Capacity | 3.6V 12000 mAh | 3.7V 5200 mAh | 3.7V 5200 mAh |
| Charger / Input | None | 5V 500mA QI wireless charger | 11.2-36V / 1A DC |
| Battery Life | > 10 years (1 report/day) > 6 years (2 reports/day) | > 20 days (1 report/10 min) > 115 days (1 report/hour) | No limitation @ external power > 110 days (1 report/hour) |
| Dimension | 103 x 58 x 35 mm | 103 x 58 x 35 mm | 103 x 83 x 35 mm |
| Weight | 180 g | 200 g | 215 g |
| Operating Temp. | -40 ºC ~ +85 ºC | -40 ºC ~ +85 ºC | -40 ºC ~ +85 ºC |
| Working Current | 30-100 mA @3.6V | 30-100 mA @3.7V | 10-35 mA @12V |
| Sleeping Current | 45 µA | 45 µA | 55 µA |
| Protocol | TCP / UDP / MQTT | ||
| Log Saving | 2000 pcs | ||
| SIM Type | Nano SIM | ||
| Interface | Digital input / Analog input / RS485 | ||
